Vertical stack card

The vertical stack card allows you to group multiple cards so they always sit in the same column.

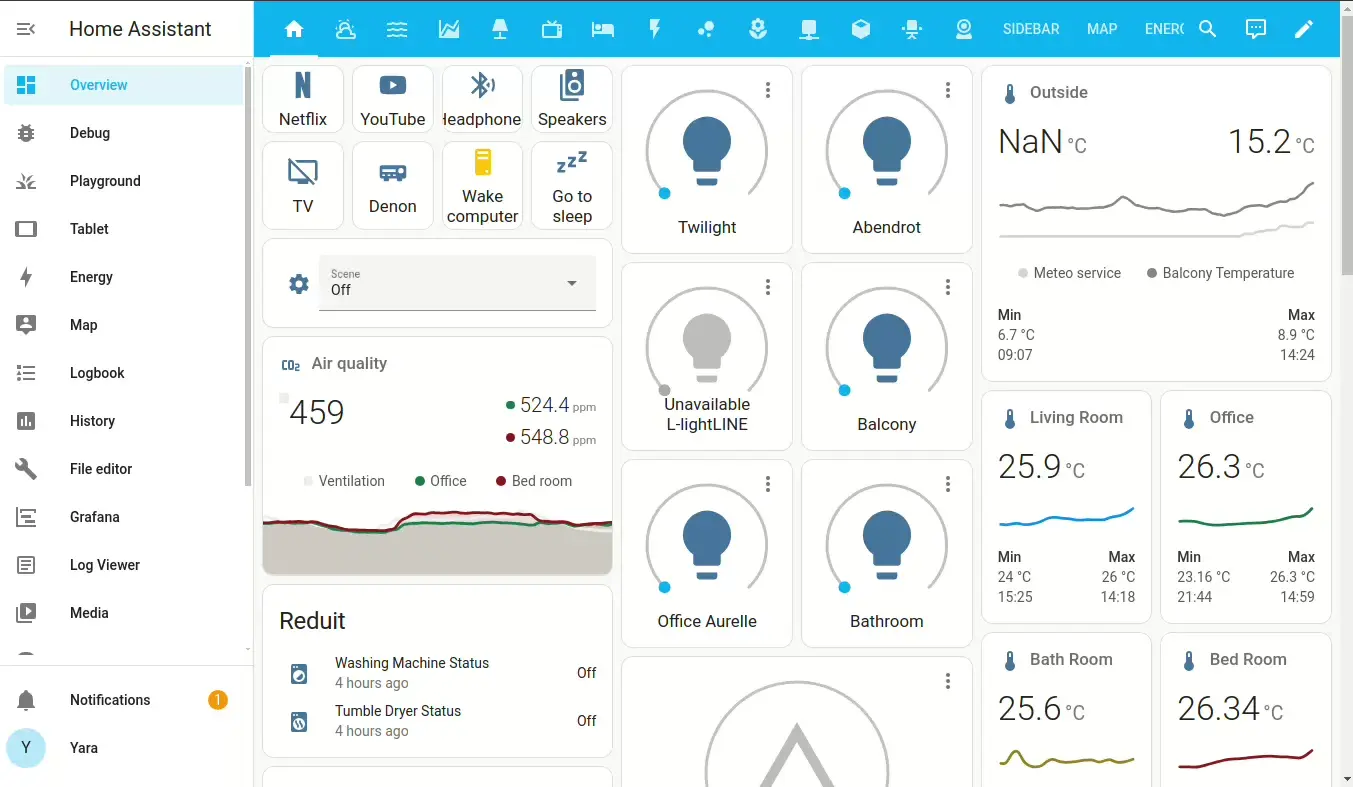

Screencast showing how to edit a dashboard and customize a vertical stack card.

To add the vertical stack card to your user interface:

1. In the top right of the screen, select the edit button.
   • If this is your first time editing a dashboard, the Edit dashboard dialog appears.
     • By editing the dashboard, you are taking over control of this dashboard.
     • This means that it is no longer automatically updated when new dashboard elements become available.
     • Once you’ve taken control, you can’t get this specific dashboard back to update automatically. However, you can create a new default dashboard.
     • To continue, in the dialog, select the three dots menu, then select Take control.
2. Add a card to your dashboard.

YAML configuration

The following YAML options are available when you use YAML mode or just prefer to use YAML in the code editor in the UI.

Examples

Basic example:

type: vertical-stack
title: Backyard
cards:
  - type: picture-entity
    entity: camera.demo_camera
    show_info: false
  - type: entities
    entities:
      - binary_sensor.movement_backyard

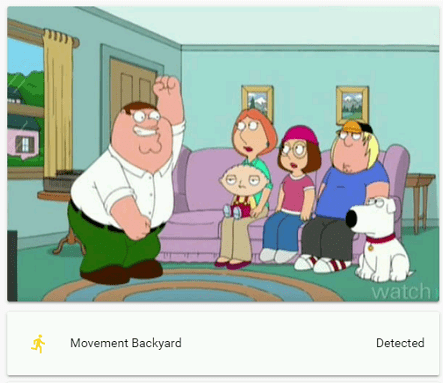

Picture and entities-card in a stack.

Combination of vertical and horizontal stack card:

type: vertical-stack
cards:
  - type: picture-entity
    entity: group.all_lights
    image:  /local/house.png
  - type: horizontal-stack
    cards:
      - type: picture-entity
        entity: light.ceiling_lights
        image: /local/bed_1.png
      - type: picture-entity
        entity: light.bed_light
        image: /local/bed_2.png

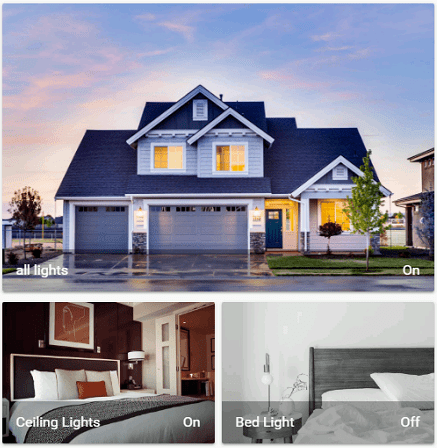

Create a grid layout using vertical and horizontal stack.
